Venteo de TanquesFiltración estéril para la protección del proceso
En la industria farmacéutica, la prevención incluye evitar la afluencia de bacterias. En la mayoría de los casos, es más sencillo prevenir un acontecimiento indeseable que tomar medidas de reparación para deshacer el daño que ya se ha producido.
Sin embargo, es seguro asumir que tanto la prevención como la remediación son necesarias en casi todos los sistemas de agua, incluidos los sistemas de agua farmacéuticos, para controlar las bacterias y otros contaminantes.
En la industria farmacéutica, el control de la contaminación es un requisito crítico en todas las etapas del proceso. El venteo permite la respiración controlada de los tanques, manteniendo la presión de equilibrio y evitando la entrada de microorganismos, partículas y otros contaminantes del entorno.
En aplicaciones farmacéuticas y biofarmacéuticas, el venteo no es un simple intercambio de aire, sino un elemento clave para preservar la esterilidad del sistema y proteger la calidad del producto.
Aprender más

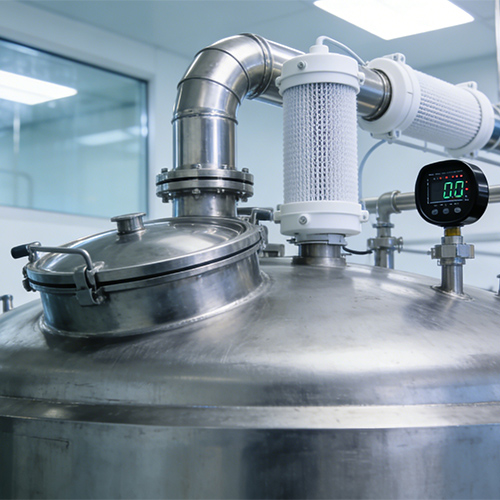

El venteo de tanques consiste en permitir la entrada y salida de aire o gas de forma controlada durante operaciones como llenado, vaciado, almacenamiento y esterilización.
En sistemas farmacéuticos, el venteo se realiza mediante filtros hidrofóbicos de grado de esterilización, que actúan como barrera microbiológica entre el interior del tanque y el ambiente externo, cumpliendo con los requisitos de procesos GMP.
El venteo se utiliza ampliamente en distintos tipos de tanques dentro de los procesos farmacéuticos, por ejemplo: Tanques de agua purificada y agua para inyección, Tanques de preparación y mezcla de soluciones, Tanques de almacenamiento de productos etc.
En estas aplicaciones, el venteo no solo permite el intercambio de aire durante el llenado y el vaciado, sino que también ayuda a proteger el contenido del tanque frente a contaminantes del aire, mantener la esterilidad del proceso y controlar la presión interna para evitar daños por sobrepresión o vacío.
En la industria de alimentos y bebidas, el venteo se aplica de manera similar en tanques de ingredientes y productos líquidos, con principios operativos parecidos.
Cuando el respiradero del tanque está equipado con cartuchos hidrofóbicos esterilizables de membrana PTFE, el sistema puede funcionar de manera más fiable. La membrana PTFE resiste la humedad y el vapor, reduciendo el riesgo de bloqueo y fallos del filtro.
La filtración del venteo protege el contenido del tanque frente a bacterias, virus y partículas del aire, evitando la degradación de la calidad del producto.
Además, un respiradero filtrado ayuda a mantener la presión interna equilibrada, previniendo daños por sobrepresión o vacío y reduciendo el riesgo de fugas al entorno.

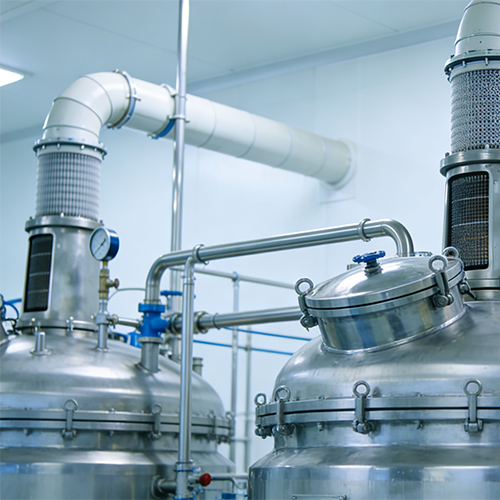

Para elegir un filtro adecuado para el venteo de tanques en la industria farmacéutica, lo más importante es combinar protección microbiológica con flujo de aire suficiente.
Generalmente se usan filtros hidrofóbicos esterilizables, normalmente con membrana de PTFE, capaces de retener bacterias y virus, y resistentes a la humedad y al vapor.
Además, la elección debe considerar el entorno y el proceso: si el área es crítica o el tanque se somete a ciclos de limpieza y esterilización (CIP/SIP), se requiere un filtro con mayor nivel de protección.
También es clave que el filtro tenga el tamaño y caudal correctos, para permitir el intercambio de aire durante el llenado, vaciado y esterilización sin causar sobrepresión o vacío en el tanque.
El venteo de tanques es clave en procesos farmacéuticos y biofarmacéuticos para proteger la calidad del producto y evitar daños por presión. Un venteo bien dimensionado permite el intercambio de aire necesario durante el llenado, vaciado y esterilización, sin comprometer la esterilidad ni la integridad del tanque.
En Brother Filtration ofrecemos soluciones de filtración de venteo diseñadas para cumplir los requisitos sanitarios de la industria farmacéutica. Contáctenos para dimensionar su venteo.
